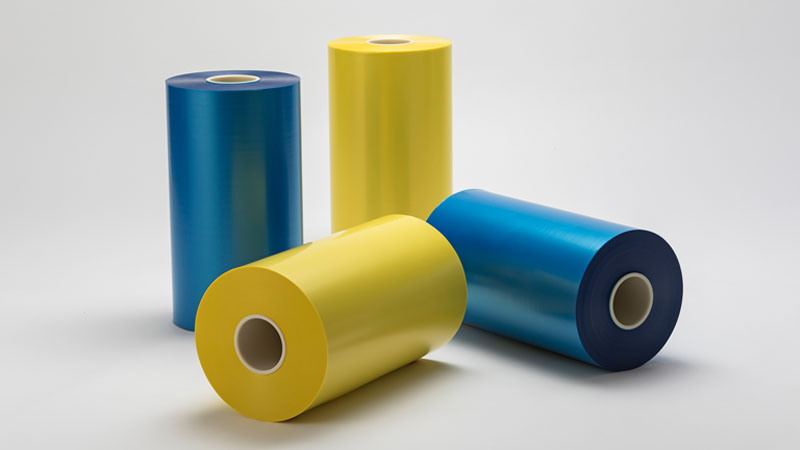

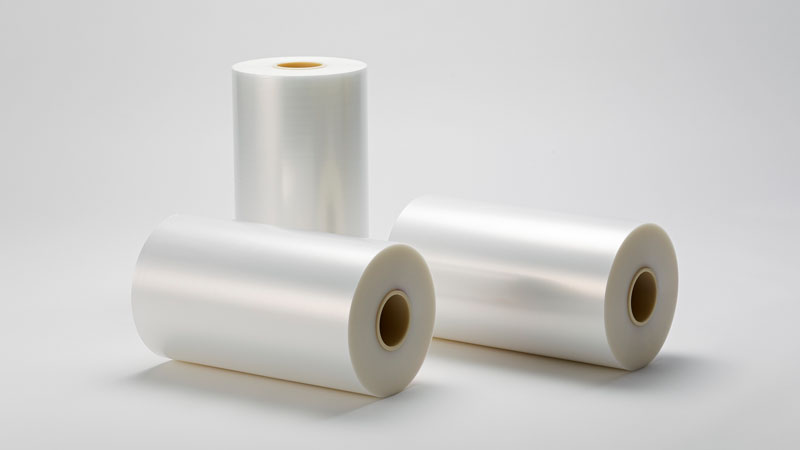

TORETEC™ Surface-Protection Film
A surface-protection film for protecting products from damage during the process, helping to improve productivity.
IT/Industry

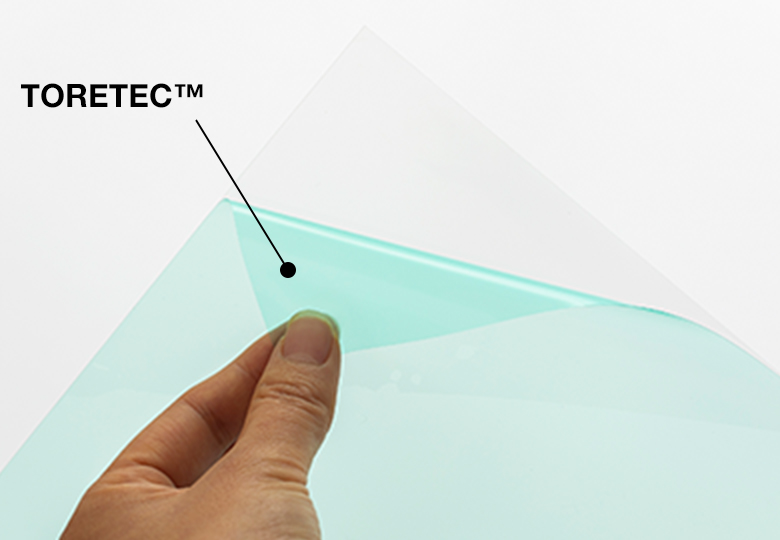

TORETEC™ is a surface-protection film that protects the surface of optical films and functional plastic plates, etc. less transcription of adhesive residue.
- Customers can select the adhesive strength, from low to strong adhesive.
- A wide selection of widths, lengths and thicknesses are available (extra wide, extra long, etc.).
- Manufactured on a production line with a proven track record in optical applications.
- It can be used as process paper in the manufacturing process of various types of optical film for liquid crystals, and additionally as a surface-protection film for plastic plates.
Click here for base films for protective films
Features
- Suitable for optical applications
- Low-adhesive type (resin plates, optical film, polarizing plates, etc.)
- Medium-adhesive type (heat-resistant and low pollution types available, e.g. for light guide plates)
- High-adhesive type (types with excellent elongation, etc.)
- Strong adhesive type (for textured resin plates/optical films, light guide plates, building materials, etc.)

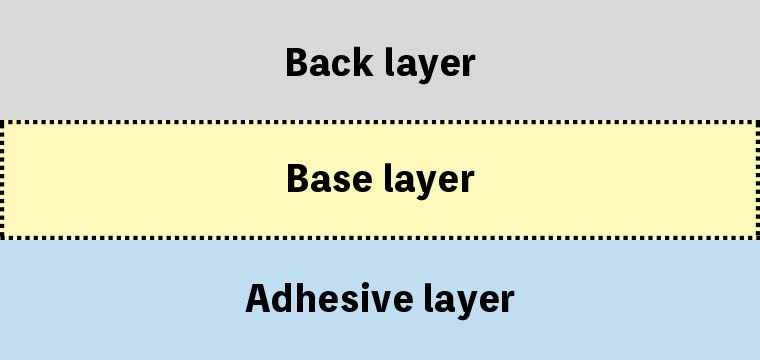

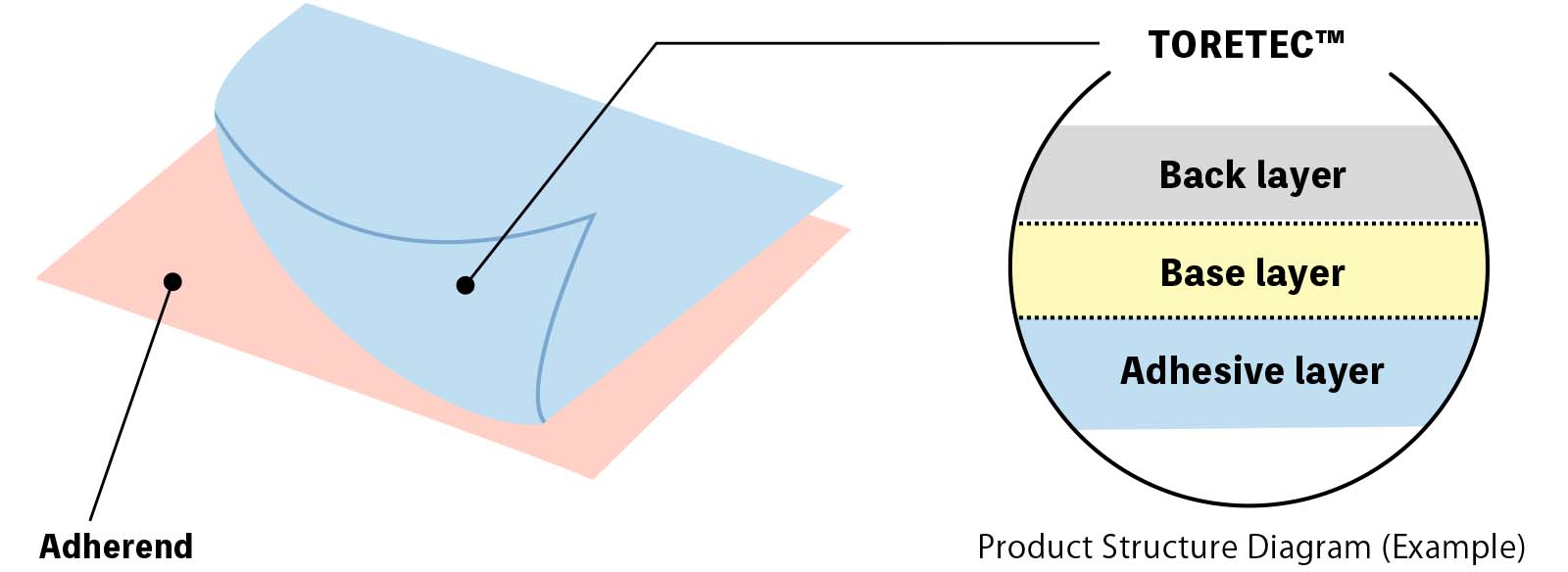

Product Structure Diagram (Example)
Low residue
Surface stays clean
Film produced by three-layer co-extrusion process.
Helps to keep the adherend surface clean and reduces material loss.
Example Applications
- For Flat-panel displays (LCD optical sheets, optical film, etc.)
- Plastic plates
- Plastic molded parts
Backlight parts
LCD TVs
Dashboards
Bike helmets
Smartphones
Suitcases
Technical Information
Physical Properties: Low Adhesive to High-Adhesive Type *Values are representative/measurement values and are not guaranteed.
TORETEC™ Low-Adhesive Type | ||||||
---|---|---|---|---|---|---|
Type Name | 7111 | 7121 | 7531 | 7721 | 7832C | 7332 |
Representative Thickness (μm) | 50 | 50 | 30 | 50 | 30 | 30 |
Breaking Strength MD (MPa) | 25 | 25 | 40 | 35 | 35 | 45 |
Breaking Strength TD (MPa) | 20 | 20 | 30 | 30 | 25 | 35 |
Tensile Elongation MD (%) | 550 | 550 | 750 | 850 | 555 | 800 |
Tensile Elongation TD (%) | 810 | 790 | 1,000 | 950 | 800 | 1,000 |
Young's Modulus MD (MPa) | 400 | 400 | 450 | 400 | 300 | 550 |
Young's Modulus TD (MPa) | 500 | 450 | 550 | 450 | 300 | 650 |
Adhesive Strength: PMMA Plate AVE (mN/25 mm) |
50 | 100 | 40 | 35 | - | 40 |
Adhesive Strength: PC Board AVE (mN/25 mm) |
- | - | 40 | 35 | 60 | 30 |
Features | • Ideal for resin plates | • Ideal for resin plates and optical films • Little change in adhesive strength |
• Ideal for polarizing-plate applications |
TORETEC™ Medium-Adhesive Type | TORETEC™ High-Adhesive Type | ||||
---|---|---|---|---|---|
Type Name | 7A62 | 7H52 | 7232 | 7461 | 7571 |
Representative Thickness (μm) | 50 | 30 | 50 | 70 | 50 |
Breaking Strength MD (MPa) | 60 | 75 | 30 | 35 | 35 |
Breaking Strength TD (MPa) | 45 | 40 | 20 | 25 | 30 |
Tensile Elongation MD (%) | 750 | 700 | 650 | 750 | 750 |
Tensile Elongation TD (%) | 890 | 855 | 930 | 925 | 1,055 |
Young's Modulus MD (MPa) | 550 | 550 | 450 | 200 | 400 |
Young's Modulus TD (MPa) | 550 | 500 | 500 | 200 | 500 |
Adhesive Strength: PMMA Plate AVE (mN/25 mm) |
- | - | 180 | 320 | 400 |
Adhesive Strength: PC Board AVE (mN/25 mm) |
170 | 80 | - | - | - |
Features | • Heat resistant | • Heat resistant • Low pollution |
• Ideal for light-guide-plate applications | • Excellent stretch | • High adhesive |
Physical Properties: Strong-Adhesive Type *Values are representative/measurement values and are not guaranteed.
TORETEC™ Strong-Adhesive Type | |||||
---|---|---|---|---|---|
Type Name | R415A | R034 | R304C | R400 | R213 |
Representative Thickness (μm) | 35 | 45 | 30 | 60 | 60 |
Breaking Strength MD (MPa) | 60 | 50 | 50 | 40 | 20 |
Breaking Strength TD (MPa) | 40 | 40 | 30 | 35 | 15 |
Tensile Elongation MD (%) | 650 | 700 | 600 | 600 | 350 |
Tensile Elongation TD (%) | 750 | 750 | 700 | 650 | 600 |
Young's Modulus MD (MPa) | 630 | 600 | 500 | 550 | 250 |
Young's Modulus TD (MPa) | 640 | 550 | 450 | 500 | 250 |
Adhesive Strength: SUS Plate AVE (N/25 mm) |
2.3 | 2.7 | 1.4 | 0.8 | 4.8 |
Features | • Ideal for use with textured resin plates or in optical-film applications | • Ideal for light-guide-plate applications | • Ideal for building-materials applications |
