Barrialox™ Transparent Barrier Film
A colorless and transparent deposited PET film that effectively blocks oxygen and water vapor. For use in various applications such as retort pouches.
Packaging
Barrialox™ is a colorless, transparent barrier film made by depositing aluminum oxide on PET film. Some types allow printing directly on the deposited surface.
- Effectively blocks water vapor and oxygen. Stable product quality with little effect from temperature and humidity.
- Aluminum oxide is non-conductive so it can be used in microwave ovens or metal detectors for detecting foreign objects.
- An environmentally friendly barrier film.
No chlorine-based raw materials are used, so no chlorine compounds are present when the film is combusted.
Little residue is left when the film is incinerated after disposal. - Transparent, so ideal for use where you want to show the contents.
- There are two main types, coated and non-coated, and the film is suitable for DL (dry lamination). The coated type is also suitable for printing and EL (extrusion lamination).
- Choose from a wide range of performance types, from medium barrier to high barrier, dry goods to retortable, anti-static, etc.
Features
- Blocks oxygen and water vapor
- Colorless and transparent so you can see inside, making it easy to check for foreign matter
- Non-conductive (suitable for microwaves and metal detectors)
- Environmentally friendly (no chlorine compounds, little residue)
- Suitable for DL (dry lamination)
- Suitable for EL (extrusion lamination) *Coated type
- Printable *Coated type
- Examples of performance types (medium to high barrier, dry goods to retortable, anti-static, etc.)
Product Structure Diagram (Example)

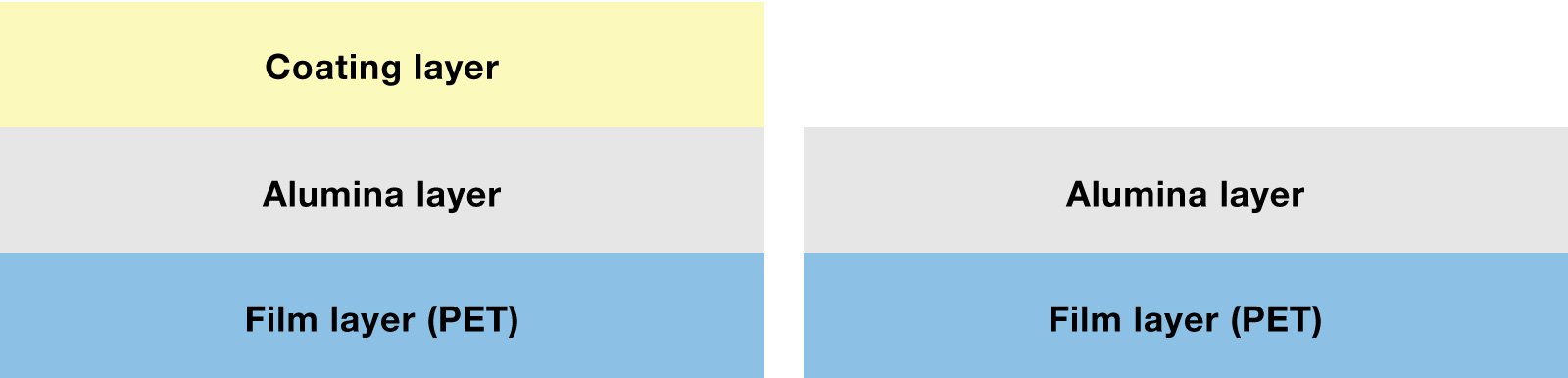

Barrialox™ coated type (left)/Barrialox™ non-coated type (right)

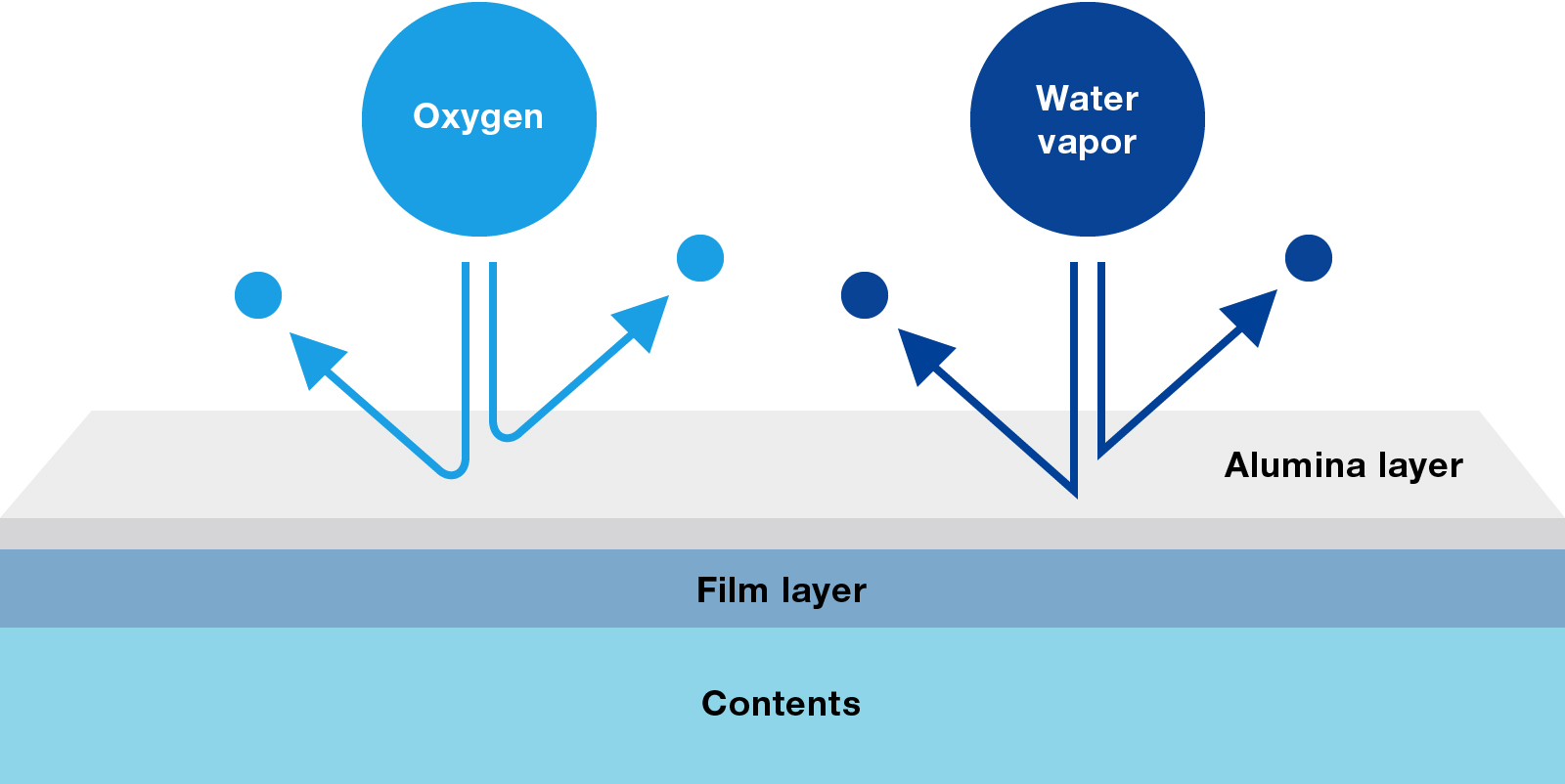

Alumina layer provides high barrier capability
*Alumina is another name for aluminum oxide
Example Applications
- Boiling/retort
- Snacks
- Toiletries
- Cover film for cups
- Wet goods
- Miscellaneous items
- Dried foods
- Pharmaceutical packaging
- Transparent Barrier Film
Boil/retort package (image for illustrative purposes)
Technical Information
Properties Table *Values are representative/measured values and are not guaranteed.
General Properties | Barrialox™ Coated Type | Barrialox™ Non-Coated Type | |||||||
---|---|---|---|---|---|---|---|---|---|
Retort | Dry Goods | High-Barrier Retort | Dry Goods | Dry Goods and Retortable | |||||
Item | Reference Standards | Unit | 1011 HGCR HGCX | 1011 HGCW HGCA | 1011 SBR2 | 1011 EGC1 | 1011 HG | 1031 HG | |
Printable Deposited/Coated Surface | Yes | Yes | Yes | Yes | No | No | |||
Corona-Treated Film Surface | No | No | No | No | No | Yes | |||
Suitable for Retort ≤ 121°C x 30 minutes | Yes | No | Yes | No | Yes | Yes | |||
Suitable for Retort ≤ 130°C x 40 minutes | No | No | Yes | No | No | No | |||
Suitable for DL | Yes | Yes | Yes | Yes | Yes | Yes | |||
Suitable for EL | Yes | Yes | Yes | Yes | No | No | |||
FDA 21CFR 177.1630 Compliant | Yes (HGCX) | Yes (HGCA) | Yes | Yes | Yes | Yes | |||
EU directive 10/2011/EC Compliant | Yes (HGCR) | - | Yes | - | Yes | Yes | |||
Thickness | Micron | 12 | 12 | 12 | 12 | 12 | 12 | ||
Tensile Strength | MD TD |
JIS C2318 | MPa | 220 250 |
220 250 |
270 220 |
220 250 |
220 250 |
220 250 |
Tensile Elongation | MD TD |
JIS C2318 | % | 140 120 |
140 120 |
160 170 |
140 120 |
140 120 |
140 120 |
Young's Modulus | MD TD |
JIS C2318 | MPa | 4600 5100 |
4600 5100 |
4700 4800 |
4600 5100 |
4600 5100 |
4600 5100 |
Haze | JIS K7361 | % | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |
Total Transmittance | JIS K7136 | % | 89 | 89 | 89 | 89 | 89 | 89 | |
Wetting Tension | Alox surface or Coating surface | JIS K6768 | mN/m | 46 | 52 | 52 | 52 | 52 | 52 |
O2TR @ 23°C x 90% RH | Representative value | JIS 7126-2 | cc/m2/day | 1.5 | 0.6 | 0.1 | 0.2 | 1.5 | 1.5 |
WVTR @ 40°C x 90% RH | Representative value | JIS K7129-2 | g/m2/day | 1.5 | 1.0 | 0.3 | 0.3 | 1.5 | 1.5 |
Suitable for Retort | Initial | 121°C x 30 minutes | 130°C x 110 minutes | 135°C x 30 minutes | ||||
---|---|---|---|---|---|---|---|---|
O2TR | WVTR | O2TR | WVTR | O2TR | WVTR | O2TR | WVTR | |
1011 HGCR/HGCX | 1.0 | 1.0 | 1.5 | 1.5 | - | - | - | - |
1011 CXR | 0.1 | 0.3 | 0.2 | 0.4 | - | - | - | - |
1011 SBR2 | 0.1 | 0.2 | 0.1 | 0.2 | 0.2 | 0.4 | 0.1 | 0.3 |
Composition: | 12-mic Barrialox // DL // 15-mic ONY // DL // 60-mic RCPP |
---|---|
O2TR: | 23°C x 90% RH |
WVTR: | 40°C x 90% RH |
Retort processing: | hot-water-tank type |
