BR-PET Aluminum-Deposited Barrier Film
An aluminum-deposited PET film that effectively blocks oxygen, water vapor and light.
Packaging
BR-PET is created by depositing aluminum on a PET film using a special proprietary method.
- Effective aluminum adhesion, blocks water vapor, oxygen and light.
- No anchor coat, so film is highly heat resistant and stable.
- Choose performance types suited to your application from the wide range available, including high barrier and MD straight cut.
Features
- Blocks oxygen and water vapor
- Blocks light
- Stable heat resistance
- Suitable for DL (dry lamination)
- Various performance types (high adhesion, high barrier, MD straight cut, etc.)

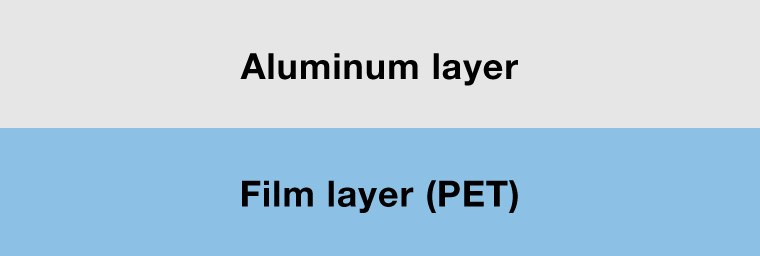

Product Structure Diagram (Example)

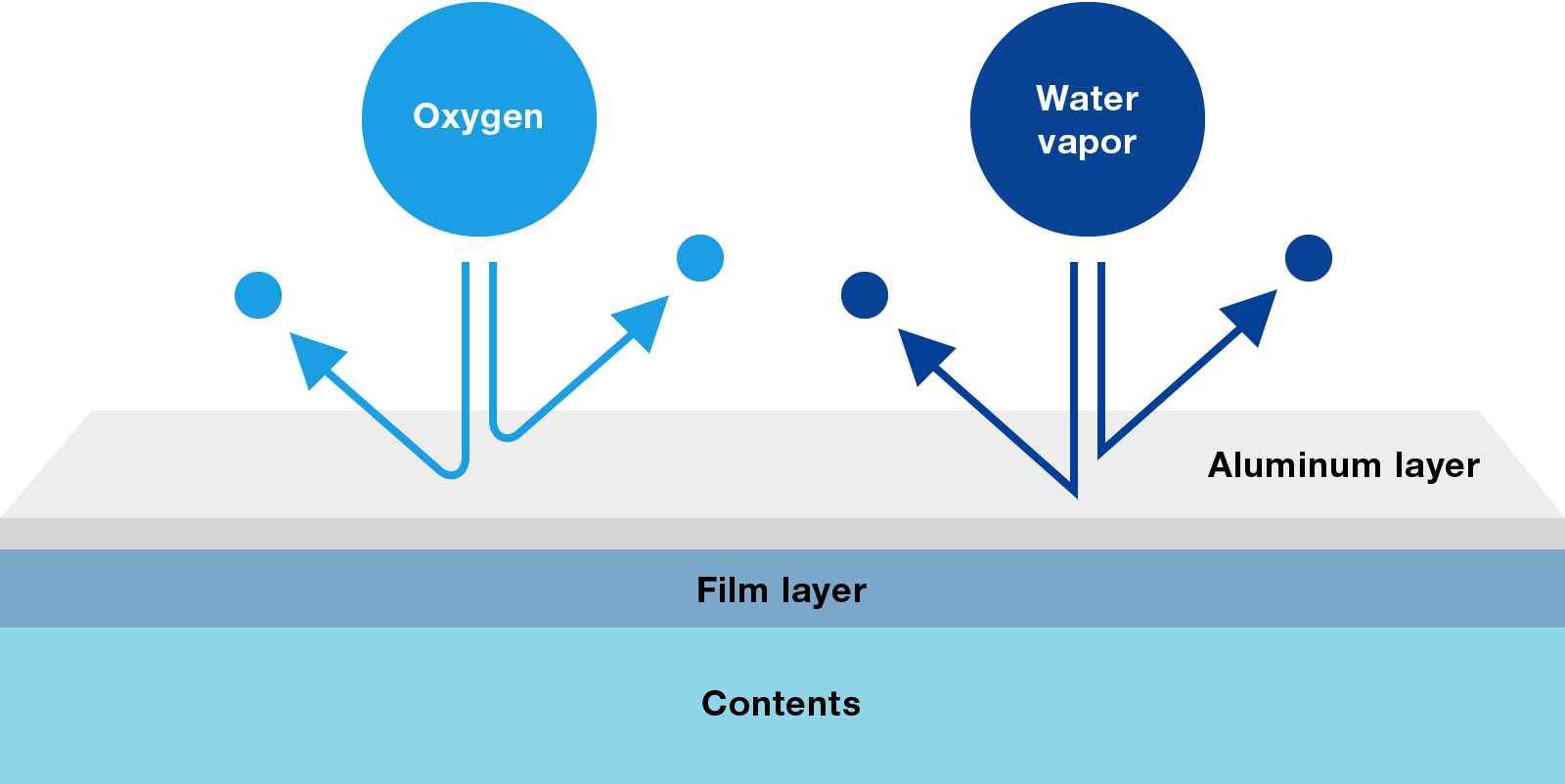

Aluminum-deposit layer blocks oxygen and water vapor
Example Applications
- Boiling
- Snacks
- Toiletries
- Cover film for cups
- Wet goods
- Miscellaneous items
- Dried foods
As used for snacks (image for illustrative purposes)
Technical Information
Properties Table *Values are representative/measured values and are not guaranteed.
| General Properties | BR-PET | |||||||
|---|---|---|---|---|---|---|---|---|
| Item | Reference Standards | Unit | 1012 | 1012J | 1312 | 1517 | 1412 | |
| Features | High adhesion | High adhesion | High barrier |
MD straight cut |
||||
| Application | Dry goods and wet goods | Dry goods and wet goods |
Dry goods | Dry goods and wet goods |
||||
| Film Surface Treatment | EC | AC | EC | EC | ||||
| Thickness | Micron | 12 | 12 | 12 | 12 | |||
| Tensile Strength | MD TD |
JIS C2318 | MPa | 250 230 |
240 230 |
215 215 |
240 230 |
|
| Tensile Elongation | MD TD |
JIS C2318 | % | 110 125 |
120 110 |
170 150 |
120 110 |
|
| Young's Modulus | MD TD |
JIS C2318 | MPa | 4800 4700 |
4400 4400 |
4000 4000 |
4400 4400 |
|
| Optical Density | Macbeth | 2.0 | 2.0 | 2.5 | 2.0 | |||
| Gloss | Film surface Aluminum surface |
JIS Z8741 (60°/60°) |
% | 600 800 |
450 750 |
650 800 |
450 750 |
|
| Wetting Tension | Aluminum surface | JIS K6768 | mN/m | 52 | 52 | 52 | 52 | |
| O2TR @ 23°C x 90% RH |
Representative value | JIS K7126-2 | cc/m2/day | 0.7 | 0.7 | 0.4 | 0.7 | |
| WVTR @ 40°C x 90% RH |
Representative value | JIS K7129-2 | g/m2/day | 0.7 | 0.7 | 0.4 | 0.7 | |
